名称：IMBA-C2260-i2 Intel C226芯片组工控大母板 IMBA-C2260-i2 工控大母板
|

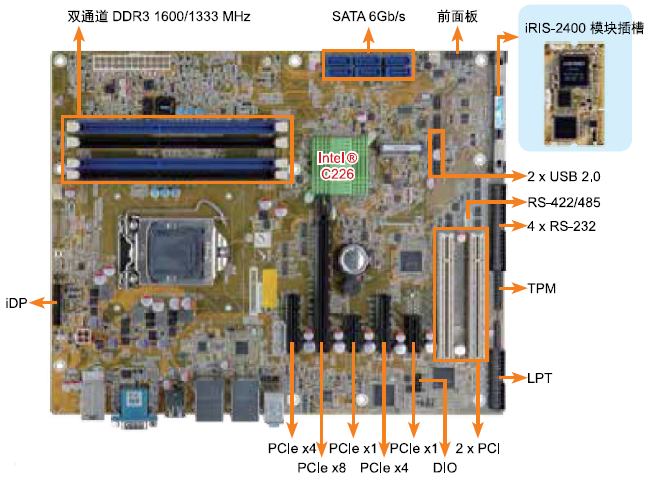

Features
1. 支持 LGA1150 Intel® Xeon® E3/Core™ i3/Pentium®/Celeron® 处理器
2. 双通道 DDR3 1600/1333MHz 支持 32GB
3. Intel® AMT 9.0 支持 Intel® PCIe GbE
4. 支持 PCI Express generation 3.0 at 8GT/s I/O 带宽
5. 支持 USB 3.0, SATA 6Gb/s 和 mSATA
6. 高速接口支持1个 PCIe x8 或2个 PCIe x4 附加卡
7. IEI免跳线功能
8. IEI 一键恢复解决方案快速创建 OS 备份和恢复
9. 支持 IPMI 2.0 via iRIS-2400 模组
I/O
Specifications
| CPU | 支持 LGA1150 Intel® Xeon® E3, Core™ i3, Pentium® 或 Celeron® 处理器 |
| 芯片组 | Intel® C226 |
| BIOS | UEFI BIOS |
| 内存 | 4个 240-pin 1600/1333MHz 双通道 DDR3 & DDR3L SDRAM ECC 以及 non-ECC 无缓冲 DIMM 支持 32GB |
| 以太网 | Intel® I210 PCIe 控制器 Intel® AMT 9.0 支持 Intel® I217 |
| I/O接口 | 5 x RS-232 1 x RS-422/485 8 x USB 2.0 (4 x rear IO, 4 by pin header) 6 x SATA 6Gb/s 1 x mSATA (colay SATA port) 1 x LPT 1 x 6-pin wafer for PS/2 KB/MS |
| 数字I/O | 8-bit 数字 I/O (4-bit 输入, 4-bit 输出) |
| Super I/O | Fintek F81866 |
| TPM | 2 x 10-pin pin header |
| SMBus | 1 x 4 pin wafer |
| 音频 | Realtek ALC662 HD Audio codec (Line-in, Line-out, Mic) |
| 显示接口 | VGA (可达1920x1200 @ 60 Hz) iDP 接口支持 HDMI, LVDS, VGA, DVI, DP (可达 3840x2160 @60 Hz) |
| LAN | 2 x 2-pin header for LAN1 LED, LAN2 LED |
| 扩展槽 | 2 x PCI 插槽 3 x PCIe x4 插槽 (支持 PCIe x1) 2 x PCIe x1 插槽 1 x PCIe x16 插槽 (with x8 信号) |
| 看门狗定时器 | 软件可编程支持 1~255 秒系统复位 |
| 电源 | ATX 电源 |
| 风扇 | 1 x 4-pin CPU 风扇连接器 2 x 3-pin 系统风扇连接器 |
| 功耗 | 3.3V@0.57A, 5V@4.50A, 12V@0.14A, Vcore@5.20A, 5VSB@0.19A (Intel® 3.10GHz CPU & 4个 1333MHz 2GB DDR3 内存) |
| 图形 | Intel® HD Graphics Gen 7.5 支持 DX11.1 和 OpenCL 1.2, OpenGL 3.2 Full MPEG2, VC1, AVC Decode |
| 工作温度 | -20°C ~ 60°C |
| 相对湿度 | 5% ~ 95%,无冷凝 |
| 尺寸 | 244mm x 305mm |
| 重量 | GW:1200g, NW: 700g |
| Front Panel | 1 x 前面板 (电源 LED, HDD LED, 扬声器, 电源按钮, 复位按钮) |
| I2C | 1 x 4 pin wafer |
| Front Audio | 2 x 5-pin header |
Ordering Information
| Part No. | Description |
| IMBA-C2260-i2-R10 | ATX motherboard supports 22nm LGA1150 Intel® Xeon E3, Core™ i3, Pentium® and Celeron® per Intel® C226, DDR3, VGA, Dual Intel® PCIe GbE, four USB 3.0, six SATA 6Gb/s, HD Audio, iRIS-2400 and RoHS |
| iRIS-2400-R10 | IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SODIMM socket interface |
| 19800-003100-300-RS | Dual-port USB cable with bracket |
| 19800-010500-200-RS | USB 3.0 cable 457mm with bracket |
| 32205-003800-300-RS | RS-422/485 cable, 200mm |
| 32205-001203-200-RS | RS-232 cable, 40-pin to four DB-9 |
| 32102-000100-200-RS | SATA power cable, MOLEX 5264-4P to SATA15P |
| 19800-000075-RS | PS/2 KB/MS Y-cable with bracket, 220mm |
| 19800-000049-RS | LPT cable |
| CF-1156A-RS-R11 | High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W |
| CF-1156E-R11 | High performance LGA1155/LGA1156 cooler kit, 95W |
| DP-LVDS-R10 | DisplayPort to 24-bit dual-channel LVDS converter board (for IEI iDP connector) |
| DP-HDMI-R10 | DisplayPort to HDMI converter board (for IEI iDP connector) |
| DP-DVI-R10 | DisplayPort to DVI-D converter board (for IEI iDP connector) |
| DP-VGA-R10 | DisplayPort to VGA converter board (for IEI iDP connector) |
| DP-DP-R10 | DisplayPort to DisplayPort converter board (for IEI iDP connector) |
| TPM-IN01-R11 | 20-pin Infineon TPM module, software management tool, firmware V3.17 |
Packing List
1 * IMBA-C2260-i2 Single Board Computer
1 * SATA Cable (P/N:32000-062800-RS)
1 * I/O Shielding (P/N:45014-0045C0-00-RS)
1 * Utility CD
