名称：IMBA-Q870 Intel Q87芯片组工控大母板 IMBA-Q870 工控大母板
|
Features
1. 支持 LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® 或 Celeron® 处理器
2. 双通道 DDR3 1600/1333MHz
3. Intel® PCIe GbE 和 Intel® AMT 9.0 支持
4. 支持独立三显 HDMI, DVI 和 VGA 和 iDP
5. 支持 PCI Express generation 3.0 at 8GT/s I/O 带宽
6. 支持 USB 3.0 和 SATA 6Gb/s mSATA
7. 威强电免跳线功能
8. 威强电一键恢复解决方案可快速创建 OS 备份和恢复
9. 通过 iRIS-2400 模块支持 IPMI 2.0

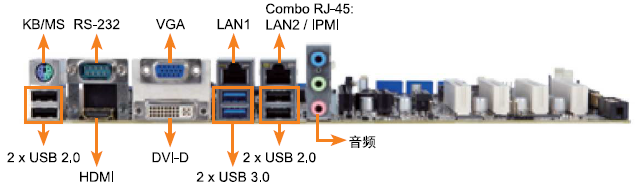

I/O
Specifications
CPU
支持 LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® 或 Celeron® 处理器
芯片组
Intel® Q87
BIOS
UEFI BIOS
内存
4 个 240-pin 1600/1333MHz 双通道 DDR3 & DDR3L SDRAM 无缓冲 DIMMs 支持 32GB
以太网
GbE1: Intel® I217LM 和 Intel® AMT 9.0 支持
GbE2: NCSI 支持 Intel® I210-AT PCIe 控制器
I/O接口
5 x RS-232
4 x USB 3.0 (2 on rear, 2 by pin header)
1 x RS-422/485
8 x USB 2.0 (4 on rear, 4 by pin header)
1 x LPT 6 x SATA 6GB/s (支持 RAID 0, 1, 5, 10)
1 x mSATA (colay SATA port 6) (仅支持 SATA 6GB/s 信号)
1 x 6-pin wafer for PS/2 KB/MS
数字I/O
8-bit 数字 I/O (4-bit 输入, 4-bit 输出)
Super I/O
Fintek F81866
TPM
1 x 20-pin (2x10) header
SMBus
1 x 4-pin wafer
音频
Realtek ALC662 HD 音频编解码器(音频输入,音频输出, 麦克风)
显示接口
VGA (可达 1920x1200 @ 60 Hz)
DVI-D (可达 2560x1600 @ 60 Hz)
HDMI (可达 2560x1600 @ 60 Hz)
iDP 接口 for HDMI, LVDS, VGA, DVI, DP (可达 3840x2160 @60 Hz)
LAN
2 x 2-pin headers for LAN1 Link LED, LAN2 Link LED
扩展槽
1 x PCIe x16 插槽 (Gen 3)
1 x PCIe x4 插槽
1 x PCIe x1 插槽
4 x PCI 插槽
看门狗定时器
软件可编程支持 1~255 秒系统复位
电源
支持 ATX 电源
风扇
1 x 4-pin CPU 风扇接口
2 x 3-pin 系统风扇接口
功耗
3.3V@0.66A, 5V@4.34A, 12V@0.16A, Vcore_12V@4.01A, 5VSB@0.21A (Intel® Core™ i7-4770K 3.90 GHz CPU with 16GB (4x4GB) 1333MHz DDR3 memory)
图形
Intel® HD Graphics Gen 7.5 支持 DX11.1 和 OpenCL 1.2, OpenGL 3.2 Full MPEG2, VC1, AVC 解码
工作温度
-20°C ~ 60°C
相对湿度
5% ~ 95%, 无冷凝
尺寸
244mm x 305mm
重量
GW:1200g, NW: 700g
Front Panel
1 x 前面板(电源 LED, HDD LED, 扬声器, 电源按钮, 复位按钮)
I2C
1 x 4-pin wafer
Front Audio
2 x 5-pin pin header
iRIS Remote Management Module
1 x iRIS-2400 插槽
Ordering Information
| Part No. | Description |
| IMBA-Q870-i2-R10 | ATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/ i3, Pentium® and Celeron® CPU per Intel® Q87, DDR3, Three Independent Displays VGA/DVI-D/HDMI/iDP, Dual Intel® GbE, USB 3.0, SATA 6Gb/s, Audio, iRIS-2400 and RoHS |
| iRIS-2400-R10 | IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SODIMM socket interface |
| 19800-003100-300-RS | Dual Ports USB Cable with bracket |
| 19800-010500-200-RS | USB 3.0 cable 457mm with bracket |
| 32205-003800-300-RS | RS-422/485 cable, 200mm |
| 32205-001203-200-RS | RS-232 cable, 40-pin to four DB-9 |
| 32102-000100-200-RS | SATA power cable, MOLEX 5264-4P to SATA15P |
| 19800-000075-RS | PS/2 KB/MS Y-cable with bracket, 220mm |
| 19800-000049-RS | LPT cable |
| CF-1156A-RS-R11 | High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W |
| CF-1156E-R11 | High performance LGA1155/LGA1156 cooler kit, 95W |
| DP-LVDS-R10 | DisplayPort to 24-bit dual-channel LVDS converter board (for IEI iDP connector) |
| DP-HDMI-R10 | DisplayPort to HDMI converter board (for IEI iDP connector) |
| DP-DVI-R10 | DisplayPort to DVI-D converter board (for IEI iDP connector) |
| DP-VGA-R10 | DisplayPort to VGA converter board (for IEI iDP connector) |
| DP-DP-R10 | DisplayPort to DisplayPort converter board (for IEI iDP connector) |
| TPM-IN01-R11 | 20-pin Infineon TPM module, software management tool, firmware V3.17 |
Packing List
1 * IMBA-Q870-i2 single board computer
2 * SATA Cable (P/N: 32000-062800-RS)
1 * I/O shielding (P/N: 45014-0046C0-00-RS)
1 * Utility CD
1 * QIG
