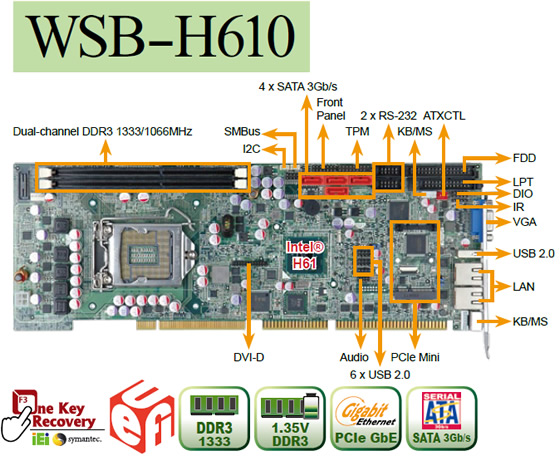

| Specifications |
| |
| CPU |
LGA1155 socket supports Intel Core™ i7/i5/i3/Pentium®/Celeron processor |
| PCH |
Intel H61 |
| BIOS |
UEFI |
| System Memory |
Two 240-pin 1333/1066MHz dual-channel DDR3 & DDR3L (1.35V) DIMMs supported (system max. 16GB) |
| Ethernet |
Dual Realtek RTL8111E PCIe GbE controllers (LAN1 with ASF 2.0 support) |
| I/O Interface |
2 x RS-232
1 x RS-422/485
1 x LPT
1 x FDD
1 x PS/2 KB/MS
1 x 6-pin wafer for KB & MS
7 x USB 2.0 (1 on rear, 6 by pin header)
4 x SATA 3Gb/s (H61 doesnt support AHCI & RAID) |
| Digital I/O |
8-bit digital I/O (4-bit input, 4-bit output) |
| Super I/O |
Fintek F81866 |
| TPM |
2 x 10-pin header |
| SMBus |
1 x 4-pin wafer |
| Audio |
Supports 7.1 channel HD audio by IEI AC-KIT-888HD kit |
| Display Interfaces |
1 x VGA

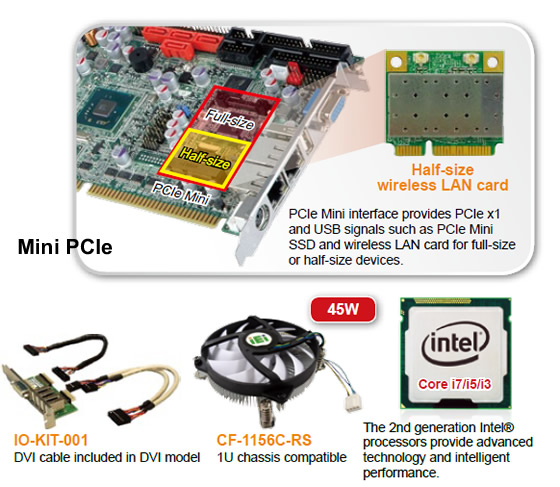

1 x DVI-D (via header to IO-KIT-001-R20 DVI-D/USB module) (optional) |
| Expansion |
PCI signal and ISA signal via golden finger |
| Watchdog Timer |
Software programmable supports 1~255 sec. system reset |
| Power Supply |
5V/12V, AT/ATX support |
| Power Consumption |
5V@4.53A, 12V@0.19A, Vcore_12V@7.81A, 5VSB@0.18A
(3.4GHz Intel® Core™ i7-2600K with two 2GB 1333MHz DDR3 memory) |
| Graphic |
Intel® HD Graphics Gen 6 supports for DX10.1 and OpenGL 3.0
Full MPEG2, VC1, AVC Decode |
| Temperature |
-10°C ~ 60°C |
| Humidity |
5% ~95%, non-condensing |
| Dimensions |
338 mm x 122 mm |
| Weight |
GW: 1000g/NW: 260g |
| Embedded Controller |
ITE IT8519E |
| Front Panel |
1 x Front panel (power LED, HDD LED, speaker, power button, reset button) |
| I2C |
1 x 4-pin wafer |
| PCIe-PCI Bridge |
ITE IT8892E |
| PCI-ISA Bridge |
ITE IT8888G |
| Fan Connector |
1 x 4-pin smart Fan Connector
1 x 4-pin system Fan Connector |
|
|
| Ordering Information |
| |
| Part No. |
Description |
| WSB-H610-R10 |
Full-size PICMG 1.0 CPU card supports 32nm LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® H61, DDR3, VGA, dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, COM, HD Audio and RoHS |
| WSB-H610-DVI-R10 |
Full-size PICMG 1.0 CPU card supports 32nm LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® H61, DDR3, VGA/DVI-D, dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, COM, HD Audio and RoHS |
| 32006-000300-100-RS |
Male PS/2 KB/MS Y-cable w/o bracket, 12cm(KB)+14cm(MS) |
| 19800-000075-RS |
6-pin header PS/2 KB/MS Y-cable with bracket, 220mm |
| SAIDE-KIT01-R10 |
SATA to IDE/CF converter board |
| 32102-000100-300-RS |
SATA power cable |
| 19800-000049-RS |
LPT cable |
| 32229-000100-100-RS |
FDD cable |
| AC-KIT-888HD-R10 |
7.1 channel HD audio kit with Realtek ALC888 supports dual audio streams |
| CPU-DT-i5-2500T |
Intel® Core™ i5-2500T processor, LGA1155, quad core 2.3GHz, 6M cache, 45W, compatible with CF-1156C-RS CPU cooler |
| CPU-DT-i5-2390T |
Intel® Core™ i5-2390T processor, LGA1155, dual core 2.7GHz, 3M cache, 35W, AMT, compatible with CF-1156C-RS CPU cooler |
| CPU-DT-i3-2100T |
Intel® Core™ i3-2100T processor, LGA1155, dual core 2.5GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler |
| CPU-DT-P-G620T |
Intel® Pentium® G620T processor, LGA1155, dual core 2.2GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler |
| CPU-DT-C-G440 |
Intel® Celeron® G440 processor, LGA1155, single core 1.6GHz, 1M cache, 35W, compatible with CF-1156C-RS CPU cooler |
| CF-1156A-RS-R10 |
High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W |
| CF-1156B-RS-R10 |
High performance LGA1155/LGA1156 cooler kit, 95W |
| CF-1156C-RS |
LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W |
| CF-1156D-RS |
LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W |
| TPM-IN01-R11 |
20-pin Infineon TPM module, software management tool, firmware V3.17 |
|
|
