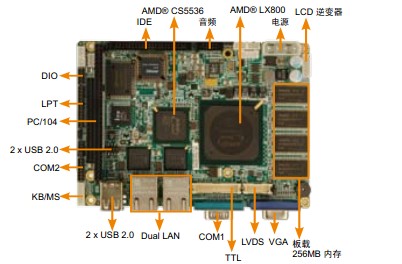

Wafer-LX3
3.5" SBC, AMD Geode™ LX800 Processor with VGA/LVDS/TTL,Dual LAN, USB 2.0, Audio and On-Board Memory
| Features |
| | 1. 3.5" Form Factor with AMD Geode™ LX800 (500MHz) CPU
2. On-board DDR 256MB memory
3. VGA, 24-bit TTL, 18-bit LVDS Display Interface
4. 1 x RS-232 and 1 x RS-232/422/485
5. Supports wide operating temperature |
| Specifications |
| | | CPU | AMD Geode™ LX800 (500MHz) processor | | System Chipset | AMD Geode CS5536 I/O companion | | BIOS | Award BIOS | | System Memory | DDR 256MB on-board, optional 128MB | | Ethernet | Dual 10/100 Mbps Intel® 82551ER controller | | I/O Interface | 1 x RS-232
1 x RS-232/422/485
4 x USB 2.0
1 x IDE
1 x LPT | | Super I/O | Winbond W83627EHG | | Digital I/O | 8-bit digital I/O, 4-bit input/ 4-bit output | | Infrared | N/A | | Audio | AC`97 codec with Realtek ALC203 | | SSD | CF type I/II | | Display Interfaces | VGA Integrated in AMD Geode™ LX800
24-bit TTL
18-bit single channel LVDS | | Expansion | PC/104 (ISA Bus) | | Watchdog Timer | Software programmable supports 1 ~255 sec. System reset | | Power Supply | AT/ATX support | | Power Consumption | 5V@1.34A (AMD Geode LX800 (500MHz) CPU with 256MB on-board memory) | | Temperature | operation:
0°C ~+60°C for WAFER-LX3-800
-20°C ~+80°C for WAFER-LX3-800W | | Humidity | operation: 5% ~95%non-condensing | | Dimensions | 146 mm x 102 mm | | Weight | GW: 600g; NW: 160g | |
| Ordering Information |
| | | Part No. | Description | | WAFER-LX3-800-R20 | 3.5" SBC with AMD Geode LX800 Processor, VGA/LVDS/TTL, Dual LAN, USB 2.0, Audio, on-board 256MB memory | | WAFER-LX3-800W-R20 | 3.5" SBC with AMD Geode LX800 (500MHz) Processor, VGA/LVDS/TTL, Dual LAN, USB 2.0, Audio, on-board 256MB memory and wide operating temperature(-20ºC~+80ºC) | | 32200-015100-RS | LPT Cable | |
| Packing List |
| | | 1 * WAFER-LX3 Single Board Computer | 1 * Mini Jumper Pack | | 1 * IDE flat cable 44p/44p (P/N:32200-000009-RS) | 1 * RS-232/422/485 cable (P/N:32200-026500-RS) | | 1 * KB/MS Y cable (P/N:32000-023800-RS) | 1 * USB cable (P/N:32000-070300-RS) | | 1 * Audio cable (P/N:32000-072100-RS) | 1 * Utility CD | | 1 * QIG | |
