| Specifications |
| |
| CPU |
LGA1155 socket 支持 Intel® Core™ i7/i5/i3/Pentium®/Celeron® 处理器 |
| PCH |
Intel® H61 |
| BIOS |
UEFI BIOS |
| 内存 |
支持两个 240-pin 1333/1066MHz 双通道 DDR3 & DDR3L (1.35V) DIMMs (系统最大支持 16GB) |
| 以太网 |
Dual Realtek RTL8111E PCIe GbE 控制器 (LAN1 支持 ASF 2.0) |

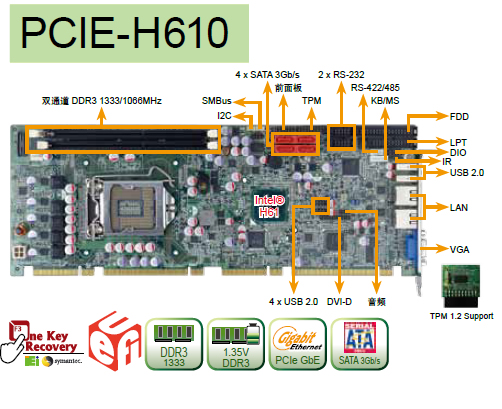

| I/O接口 |
2 x RS-232
1 x RS-422/485
4 x SATA 3GB/s
1 x LPT
1 x FDD
1 x 6-pin wafer for KB/MS
6 x USB 2.0 (两个位于 IO , 四个位于板载排针转接口)
4 x USB 2.0 (四个位于底板排针转接口) |
| 数字I/O |
8-bit 可编程 I/O |
| Super I/O |
Fintek F81866 |
| 红外连接器 |
1 x 5-pin header |
| TPM |
2 x 10-pin headers |
| SMBus |
1 x 4-pin wafer |
| 音频 |
IEI AC-KIT-888HD 音频套件 |
| 显示接口 |
1 x VGA
1 x DVI-D (via header to IO-KIT-001-R20 DVI-D/USB 模块) (可选) |
| 扩展槽 |
PCIe 信号及 PCI 金手指信号 |
| 看门狗定时器 |
软件可编程支持 1~255 秒系统重置 |
| 电源 |
支持 5V/12V, AT/ATX 电源模式 |
| 风扇 |
1 x 4-pin 智能风扇接口 |
| 功耗 |
5V@4.41A, 12V@0.21A, Vcore_12V@7.72A, 3.3V@1.71A, 5VSB@0.16A (3.4GHz Intel® Core™ i7-2600K 支持两个 2GB 1333MHz DDR3 内存) |
| 图形 |
ntel® HD Graphics Gen 6 支持 DX10.1 和 OpenGL 3.0, Full MPEG2, VC1, AVC Decode |
| 工作温度 |
-10°C ~ 60°C |
| 相对湿度 |
5% ~95%, 无冷凝 |
| 尺寸 |
338 mm x 126 mm |
| 重量 |
GW: 1200g/NW: 420g |
|
|
| Ordering Information |
| |
| Part No. |
Description |
| PCIE-H610-R10 |
Full-size PICMG 1.3 CPU card supports 32nm LGA1155 Intel® Core™ i7/i5/i3 CPU with Intel® H61, DDR3, VGA, Dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, HD Audio and RoHS |
| PCIE-H610-DVI-R10 |
Full-size PICMG 1.3 CPU card supports 32nm LGA1155 Intel® Core™ i7/i5/i3 CPU with Intel® H61, DDR3, VGA/DVI-D, Dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, HD Audio and RoHS |
| 32205-003800-100-RS |
RS-422/485 cable, 200mm |
| 19800-000075-RS |
KB/MS cable with bracket |
| SAIDE-KIT01-R10 |
SATA to IDE/CF converter board |
| 32102-000100-200-RS |
SATA power cable |
| 32229-000100-100-RS |
FDD flat cabl |
| 32200-015100-RS |
LPT cable |
| AC-KIT-888HD-R10 |
7.1 channel HD audio kit with Realtek ALC888 supports dual audio streams |

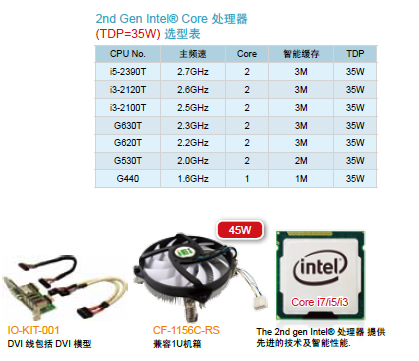

| CPU-DT-i5-2500T |
Intel® Core™ i5-2500T processor, LGA1155, quad core 2.3GHz, 6M cache, 45W, compatible with CF-1156C-RS CPU cooler |
| CPU-DT-i5-2390T |
Intel® Core™ i5-2390T processor, LGA1155, dual core 2.7GHz, 3M cache, 35W, AMT, compatible with CF-1156C-RS CPU cooler |
| CPU-DT-i3-2100T |
Intel® Core™ i3-2100T processor, LGA1155, dual core 2.5GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler |
| CPU-DT-P-G620T |
Intel® Pentium® G620T processor, LGA1155, dual core 2.2GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler |
| CPU-DT-C-G440 |
Intel® Celeron® G440 processor, LGA1155, single core 1.6GHz, 1M cache, 35W, compatible with CF-1156C-RS CPU cooler |
| CF-1156A-RS-R10 |
High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W |
| CF-1156B-RS-R10 |
High performance LGA1155/LGA1156 cooler kit, 95W |
| CF-1156C-RS |
LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W |
| CF-1156D-RS |
LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W |
| TPM-IN01-R11 |
20-pin Infi neon TPM module, software management tool, firmware V3.1 |
|
|
