CPU
On-board ULV Intel® Celeron® M Processor | System Chipset
Intel® 852GM + ICH4 | BIOS
AMI BIOS | System Memory
1 x 200-pin Signal channel DDR266 SO-DIMM up to1GB | Ethernet
Dual Realtek RTL8110SC GbE chipsets | I/O
5 x RS-232
1 x RS-232/422/485
4 x USB 2.0
1 x IDE
1 x PS/2 for KB/MS

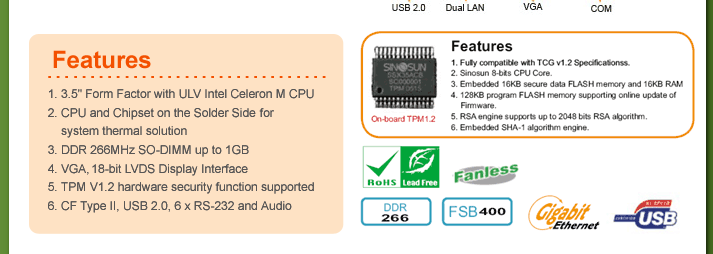

1 x TPM V1.2 module on-board (SINOSUN SSX35) | Super I/O
ITE IT8712F | Expansion
PCI-104 (PCI Bus) | | Audio
Realtek ALC655 with AC97 Codec | Display
VGA integrated in Intel 852GM
18-bit dual channel LVDS
IrDA
1 x IrDA by pin header | Watchdog Timer
Software programmable supports 1 ~255 sec. System reset | Power Supply
AT/ATX support | Power Consumption
5V@3.43A, 12V@0.13A
(Celeron® M 1GHz/ 400MHz CPU with 1GB 400MHz DDR) | Temperature
operation: 0 ~ 60º (32 ~ 140ºF) | Humidity
operation: 5% ~ 95% non-condensing | Dimension
146 x 102mm | Weight
GW: 900g; NW: 175g | | | |
| Packing List | | 1 x WAFER-8522 Single Board Computer | 1 x Mini Jumper Pack | 1 x IDE Flat Cable 44p/44p(P/N:32200-000009-RS)
| 1 x 4 RS-232 Adapter Cable (P/N: 32200-025401-RS) | 1 x PS/2 Keyboard/Mouse Cable (P/N: 32000-023800-RS)
| 1 x Audio Cable (P/N: 32200-072100-RS) | 1 x Enclosure Heatsink
| 1 x Utility CD | 1 x QIG (Quick Installation Guide)
| | |
| Ordering Information | Part No.
| Description | | WAFER-8522-1GZ-R10 | 3.5" SBC with ULV IntelR CeleronR 1GHz Zero Cache
CPU with VGA/LVDS, Dual GbE, USB 2.0
and Audio | | WAFER-8522-600-R10 | 3.5" SBC with ULV IntelR CeleronR 600MHz 512K Cache
CPU with VGA/LVDS, Dual GbE, USB 2.0
and Audio | | WAFER-8522T-1GZ-R10 | 3.5" SBC with ULV Intel Celeron 1GHz zero cache
CPU with VGA/LVDS, Dual GbE, USB 2.0,
Audio and TPM | | WAFER-8522T-600-R10 | 3.5" SBC with ULV IntelR CeleronR 600MHz 512K Cache
CPU with VGA/LVDS, Dual GbE, USB 2.0,
Audio and TPM | | 32200-000077-RS | RS-232/422/485 Cable | | 32000-070300-RS | USB Cable | | IO-KIT-4COM-R10 | 4 COM Ports Adapter Board | |
| |
| |
