ECN-581A-QM57 I5 双DVI显示嵌入式BOXPC
| ECN-581A-QM57 | Intel® Mobile Core™ i5 双 DVI 显示嵌入式系统 |
| Features | | | ·支持Intel® 32 nm 移动处理器 Intel® Core™ i5-520M
·支持双DVI独立显示
·可支持 DDR3 800/1066 MHz 最大至 4GB
·支持 Intel® GbE LAN 和 Intel® AMT 6.0 技术
·12V DC电源输入
·可选无线 (PCIe Mini 卡) | |
| |
| Specifications |
| | | 型号 | NANO-QM57A | | 处理器 | Intel® Core™ i5-520M | | 主板 | NANO-QM57A | | 芯片组 | Intel® mobile QM57 | | 内存 | 预装1 x 2 GB DDR3 SDRAM SO-DIMM (最大支持4GB) | | 显示接口 | 1 x DVI-D (1920x1200)

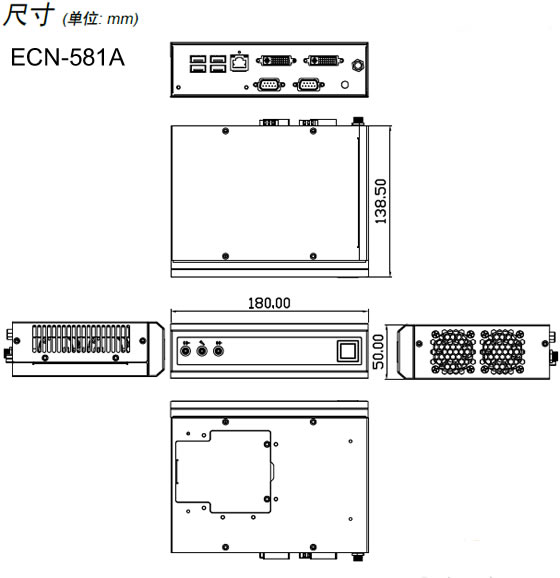

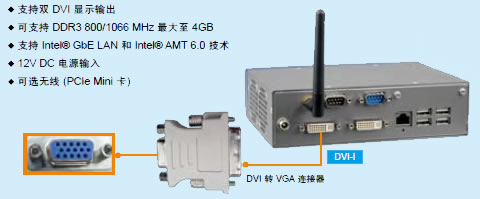

1 x DVI-I (通过DVI 转VGA转接器可支持 VGA ) | | 以太网 | 1× Intel ®82577 PCIe LAN 控制器 (支持Intel® AMT 6.0) | | USB | 4 x USB 2.0 | | 串口 | 2 x RS-232 | | 硬盘 | 1 x 2.5" SATA HDD 空间 | | 音频 | 1 x 麦克风输入, 1 x 音频输出, 1 x 音频输入(前面板) | | 抗震动 | MIL-STD-810F 514.5C-2 (SSD) | | 抗冲击 | Half-sine wave shock 3 G; 11ms; 3 shocks per axis (SSD) | | 扩展槽 | 1 x PCIe Mini 卡插槽, 无线模块 | | 功耗 | 12V@4.18A (Intel® Core™ i5-520M 2.66G, DDR3 2GB) | | 电源输入 | 12 V DC 输入 | | 工作温度 | -10°C ~ 50°C (HDD) 空气气流环境* | | 尺寸(D×W×H)(mm) | 180 mm (W) x 138 mm (D) x 50 mm (H) | | 重量(NW/GW) | 1.1 kg / 2 kg | |
| Ordering Information |
| | | Part No. | Description | | ECN-581A-R11/QM57-I5/2GB | Embedded system with NANO-QM57A, Intel® Core i5-520M Processor 3M Cache 2.40 GHz, with dual DVI display support iAMT6.0, with 2GB DDR3 memory, 12VDC, 60W power adaptor with ERP and PSE certificates, Reflex Blue C + 8403C, RoHS | | ECN-581AW-R11/QM57-I5/2GB | Embedded system with NANO-QM57A, Intel® Core i5-520M Processor 3M Cache,2.40 GHz, with dual DVI display support iAMT6.0, built-in 802.11b/g/n wireless, with 2GB DDR3 memory, 12VDC, 60W power adaptor with ERP and PSE certificates, Reflex Blue C + 8403C, RoHS | |
| Packing List |
| | | 1 * QIG | 1 * Screw set | | 2 * Wall mount bracket | 1 * Driver CD | | 1 * 60W 12V Power adaptor (P/N:63000-FSP060DBAB1552-RS) | 1 * Power cord | | 1 * 2dbi wireless antenna (for wireless model only) | | |
