PPC-2706GS 6.5-LCD-LX800平板电脑
| PPC-2706GS
6.5’TFT 平板电脑，AMD Geode LX800 | |
| .gif)  |
|
|
|
|
|
|

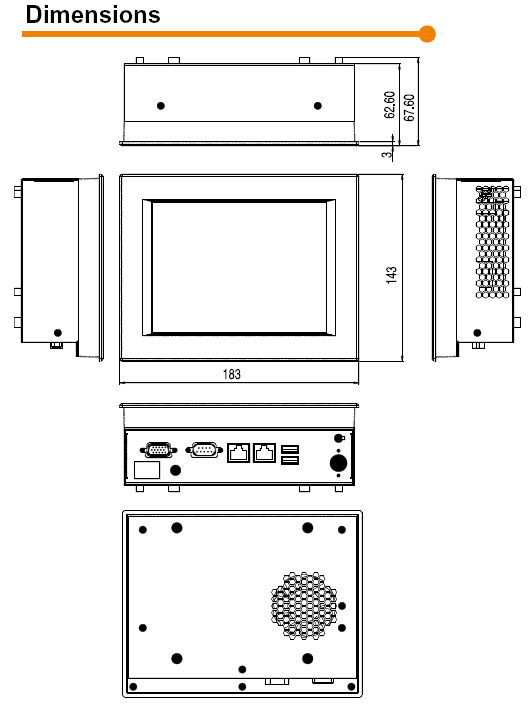

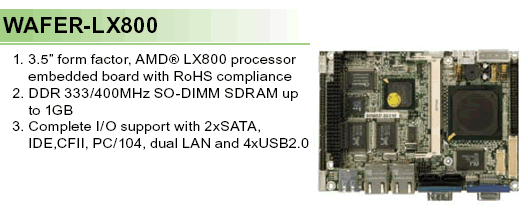

| | PPC-2706 | PPC-2708 | | PPC-2706 | PPC-2708 | | • CPU Board | WAFER-LX800 | • Touch Screen | Optional 4-wire resistive type with RS-232 interface | | • CPU | AMD® Geode LX800 | • Power Supply | AC adapter -60W, 63000-FSP0601AD101C712-RS - Input: 90 ~ 240VAC @ 50/60Hz, Output: 12VDC | | • Chipset | AMD LX 800 + CS5536 | • Operating Temp. | 0 ~ 50°C | | • Memory | 1 x DDR 333/400MHz SO-DIMM socket up to 1GB | • Storage Temp | -20 ~ 60°C. | | • VGA | AMD®Geode LX800 | • Vibration | - 5~17Hz 0.1”double amplitude displacement -17~640 Hz 1.5G acceleration peak to peak | | • SSD | CF Type II | • Shock | 10G acceleration peak to peak. (11ms) | | • Drive Bay | 1 x 2.5" SATA/IDE HDD bay | • Relative Humidity | 5 ~ 95% @ 60° C, non-condensing | | • Ethernet | Dual RTL8100C 10/100Mbps | • Net / Gross Weight | 1.4/ 3.4 Kg | 2.2 / 4.4 Kg | | • Audio | AC ’97 2.3 RealtekALC 655 | • Dimension | 183(w) x 143(H) x
62.6(D)mm | 244(w) x 178(H) x 67(D)mm | | • I/O | -1 x RS-232 ports | -2 x RS-232 ports
(one for optional touch)
| • LCD | - Resolution :
640 x 480 VGA | -Resolution
800 x 600 SXGA | | - 2 x USB 2.0 ports | - 2 x USB 2.0 ports | - Brightness :
400 cd/m2 | - Brightness :
220 cd/m2 | | -1 x PS/2 ports (KB/MS) | - 1 x PS/2 ports (KB/MS)
| - Contrast Ratio :
550:1
| - Contrast Ratio :
500:1 | | - 1 x VGA out | -1 x VGA out | - Viewing Angle
(H-V):140/120 | -Viewing Angle
(H-V):120/100 | | - 2 x LAN -1 x Audio (Line-out) | - 2 x LAN -3 x Audio (Lin-in,
Line-out, MIC-in) | - Backlight MTBF : 50000hrs | - Backlight MTBF : 20000hrs | | - 1 x IDE - 2 x SATA | - 1 x IDE , -2 x SATA | | | | • Expansion Slot | N/A | • Front Panel Protection | IP 65 Complaint | | |
 |
 |
.gif) |
.gif) |
  |
| PPC-2706GS/LX-800 | 6.5”400 cd/m2 TFT panel PC with Wafer-LX and Silver Color, RoHS | | PPC-2706GS/LX-800/T-R | 6.5”400 cd/m2 TFT panel PC with Wafer-LX, Silver Color and Touch screen, RoHS | | PPC-2706GHS/LX-800 | 6.5”500 cd/m2 TFT panel PC with Wafer-LX and Silver Color, RoHS | | PPC-2706GHS/LX-800/T-R | 6.5”500 cd/m2 TFT panel PC with Wafer-LX, Silver Color and Touch screen, RoHS | |
