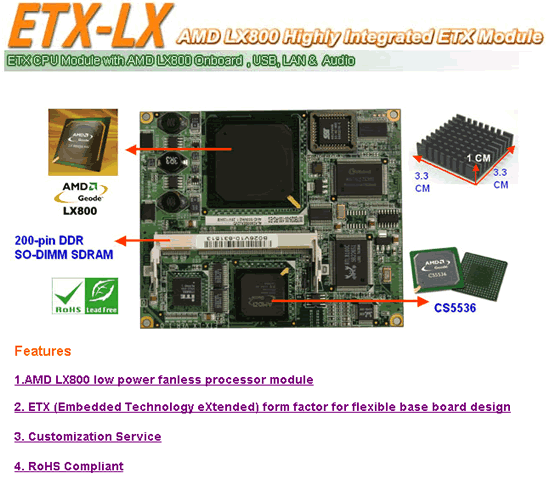

CPU
AMD LX800 processor | System Chipset
AMD CS5536 | BIOS
AWARD | System Memory
1 x 200-pin DDR 400/333MHz SO-DIMM SDRAM socket support up to 1GB | Ethernet
10/100Base-T dual RTL8100C | I/O
4 x USB 2.0
1 x LPT
1 x CFII
1 x IDE
2 x RS232
1 x PS2 KB/MS
Multi COM ports supports by base board | Super I/O
W83627EHG | Expansion
4 x PCI bus master
ISA support by IT8888G | Audio
AC97 Codec Realtek ALC203A | | Display
CRT integrated in AMD® LX800
TTL/ LVDS
24-bit TTL integrated in AMD LX800
18-bit LVDS | Watchdog Timer
Software programmable supports 1~255 sec. system reset | Power Supply
AT/ATX support | Power Consumption
+5V@0.92A
(AMD LX-800 CPU with DDR 333MHz 256MB RAM) | Temperature
Operation: 0 ~ 60º (32 ~ 140ºF) | Humidity
Operation: 5% ~ 95%,non-condensing | Dimension
95 mm x 114 mm | Weight
GW: 650g; NW: 250g | | |
| Packing List | 1 x ETX-LX single board computer
| 1 x Utility CD | 1 x Mini jumper pack
| 1 x QIG (quick installation guide | |
| Ordering Information | Part No.
| Description | | ETX-LX-800-R10 | AMD LX800 500MHz processor, CRT/LCD, LAN & Audio | | ETX-DB-7S-R20 | ATX size 7-slot ETX baseboard for ETX CPU board | |
| |
| |
