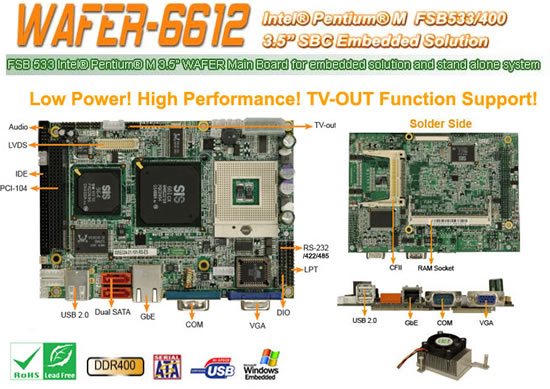

wafer-6612 SIS 6612CX Pentium M符合3.5'的嵌入式主板
.jpg) |
CPU
Socket 479 Intel® Pentium® M/Celeron M support 400/533 MHz FSB up to 2.26GHz | System Chipset
SiS 661CX + SiS 964 | BIOS
AMI BIOS | System Memory
1 x 200-pin SO-DIMM DDR 333/400MHz up to 1GB | Ethernet
Realtek RTL8110S GbE | I/O
1 x RS-232, 1 x RS 232 / 422 / 485
1 x LPT
1 x IrDA
6 x USB 2.0 / 4 by 2 x 4 pin header
2 x SATA-150 with RAID 0,1 function support
1 x IDE
1 x PS2 Keyboard / Mouse
8 bit digital I/O, 4 input/ 4 output by super I/O | Super I/O
Winbond W83697HG | Expansion
1 x PCI-104 (PCI Bus) | | Audio
AC97 Codec Realtek ALC655 | Display
CRT integrated in SiS 661CX
LVDS
Dual channel 24-Bit LVDS /TV-OUT integrated in SiS 302LV support dual display | Watchdog Timer
Software programmable supports 1~255 sec. system reset | Power Supply
5V/12V,AT/ATX support | Power Consumption
+5V@4.76A; +12V@1.4A
(Intel® Pentium® M FSB 400MHz 1.5 GHz CPU with DDR333 512MB RAM) | Temperature
operation: 0 ~ 60º (32 ~ 140ºF) | Humidity
operation: 5% ~ 95% non-condensing | Dimension
146 x 102mm | Weight
GW: 700g; NW: 230g | | | |
| Packing List | 1 x WAFER-6612 Single Board Computer
| 1 x Audio Cable (P/N: 32000-072100-RS ) | 1 x USB Cable (P/N: 32000-070300-RS)
| 1 x RS-232/422/485 Cable (P/N: 32200-026500-RS) | 2 x SATA Cable (P/N: 32000-062800-RS)
| 1 x KB/MS Cable (P/N: 32000-023800-RS) | 1 x IDE Flat Cable 44p/44p (P/N: 32200-000009-RS)
| 1 x Mini Jumper Pack | 1 x SATA Power Cable (P/N: 32100-088600-RS)
| 1 x Utility CD | | 1 x CPU Cooler (P/N: 19100-000043-RS) | 1 x QIG (Quick Installation Guide) | |
| Ordering Information | Part No.
| Description | WAFER-6612-R10
| 3.5” WAFER Socket 479 Intel® Pentium® M/ Celeron® M FSB533MHz CPU Board with VGA, LVDS, TV-OUT, GbE, Audio and SATA | | 19800-000054-RS | TV-OUT Cable | | 32200-015100-RS | LPT Cable w/o BK | |
| |
| |
