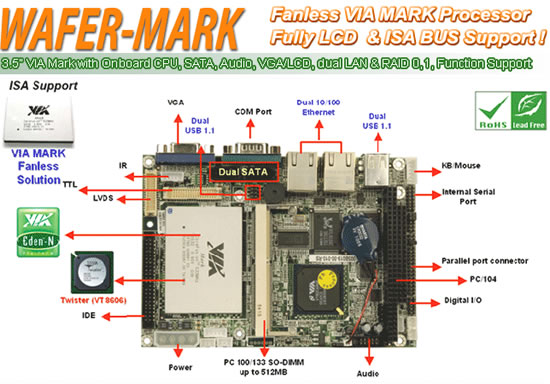

wafer-mark 板载VIA MARK533MHz CPU的3.5'嵌入式主板
| |
 |
WAFER-MARK Specification | CPU
VIA MARK 533MHz/ MARK 800MHz | System Chipset
VIA VT82C686B | BIOS
AMI BIOS | System Memory
1 x 144-pin SO-DIMM PC100/133MHz SDRAM up to 512MB | Ethernet
Dual RTL8100C for 10/100Mbps ethernet | | I/O
I/O Interface
4 x USB 1.1
2 x SATA -150 with ALI M5283 RAID 0,1 function support.
1 x LPT
1 x CFII
1 x RS-232
1 x RS-232/422/485
1 x PS/2 KB/MS
1 x IDE | Digital I/O
8 bit digital I/O, 4 input/ 4 output by VIA® VT82C686B | IrDA
By VIA VT82C686B | Super I/O
VT82C686B | | Audio
AC97 Codec Realtek ALC655 | Display
CRT integrated in VIA MARK
LVDS
24-bit TTL/ dual channel 18-bit single channel LVDS integrated in VIA® MARK | Watchdog Timer
Software programable supports 1-255 sec. system reset | Power Supply
+5V±5% only, AT/ATX support | Power Consumption
+5V@2.58 A
( VIA MARK-533 CPU with 1 x 128MB PC100/133 SO-DIMM SDRAM)
+5V@2.75 A
( VIA MARK-800 CPU with 1 x 128MB PC100/133 SO-DIMM SDRAM) | Temperature
Operation: 0 ~ 60º (32 ~ 140ºF) | Humidity
Operation: 5% ~ 95% non-condensing | Dimension
145mm X 102mm | Weight
GW: 700g; NW: 260g | | |
| Packing List | 1 x WAFER-MARK single board computer
| 2 x SATA cable ( P/N: 32000-062800-RS) | 1 x Mini jumper pack ( P/N: 33100-000079-RS)
| 1 x SATA power cable ( P/N: 32100-086600-RS) | 1 x IDE flat cable 44p/44p ( P/N: 32200-000009-RS)
| 1 x Second Serial Port Cable (P/N: 32200-026500-RS) | 1 x Keyboard/ PS2 mouse cable ( P/N: 32000-023800-RS)
| 1 x QIG (quick installation guide) | | 1 x Audio cable ( P/N: 32000-072100-RS) | 1 x Utility CD | |
| Ordering Information | Part No.
| Description | | WAFER-MARK-533-R11 | 3.5” SBC with VIA® MARK 533MHz Processor, Audio, CRT, LCD/LVDS, Dual LAN and SATA | WAFER-MARK-800-R11
| 3.5” SBC with VIA® MARK 800MHz Processor, Audio, CRT, LCD/LVDS, Dual LAN and SATA | | WAFER-MARK-WINXPE | 3.5” SBC with VIA® MARK processor, Audio, CRT, LCD/LVDS, Dual LAN , SATA, IFM 512MB and WinXPE image | | WAFER-MARK-WINCE050 | 3.5” SBC with VIA® MARK processor, Audio, CRT, LCD/LVDS, Dual LAN , SATA, IFM 32MB and WinCE image | 32200-015100-RS
| LPT cable | |
| |
